Ramp Slope Calculator: Calculate Ramp Slope and Angle
Think about building a ramp – maybe for a wheelchair, a skateboard trick, or even just getting a lawnmower into the shed. A slope, too steep, and it's unusable or unsafe; too gentle, and it might take up way too much space. Figuring out the perfect incline involves understanding the relationship between the ramp's height and its length along the ground. A Ramp Slope Calculator is a great little tool that helps you easily determine that angle or gradient to make sure your ramp works exactly as intended.
Ramp Slope Calculator: Quick Overview
Calculate ramp slopes and check ADA compliance with our comprehensive calculator. Perfect for construction, accessibility planning, and building code compliance.
Instant Calculations
Calculate slope angles, ramp length, ratios, and percentages instantly
Multiple Units
Support for inches, feet, meters, and centimeters
ADA Compliance
Verify compliance with ADA accessibility guidelines
Various Applications
Solutions for residential, commercial, and industrial use
Whether you're planning a construction project or ensuring accessibility compliance, our Ramp Slope Calculator provides instant, accurate results. Start calculating now!
The Ramp Slope Calculator is an indispensable tool for professionals and individuals alike, designed to streamline the process of determining and verifying the incline of ramps. Whether you're an architect planning a new building, a contractor ensuring ADA compliance, or a homeowner improving accessibility, this ramp calculator offers a straightforward approach to achieving safe and regulation-compliant ramp designs.
The ramp slope is the degree of inclination of a ramp, often expressed as a ratio indicating the vertical rise for every unit of horizontal run (e.g., 1:12). It determines the ease and safety with which individuals, particularly those with mobility challenges, can navigate the ramp.
Importance of Ramp Slope
Proper ramp slope is critically important across various fields and applications. Here's why:
- Accessibility and Inclusivity: A correctly sloped ramp provides equitable access for individuals using wheelchairs, walkers, or other mobility aids. This promotes inclusivity and allows more people to participate in community life.
- Safety: Too steep a ramp can lead to loss of control, increasing the risk of accidents and injuries. Too gradual a slope, though safer, might require an impractically long ramp.
- ADA Compliance: The Americans with Disabilities Act (ADA) sets specific guidelines for ramp slopes to ensure accessibility. Non-compliance can result in legal repercussions and hinder accessibility efforts.
- Building Codes and Regulations: Beyond ADA, local building codes often dictate ramp slope standards. Adhering to these codes is essential for obtaining permits and ensuring building safety.
- User Comfort: A well-designed ramp considers user effort and fatigue. Comfortable slopes make it easier for individuals to traverse the ramp without undue strain.
- Efficiency of Space: The correct calculation of ramp slope maximizes the usability of the available area, ensuring that the slope fits within the practical constraints of the location.
What is a Ramp Slope Calculator?
A ramp slope calculator is a specialized tool designed to assist in the determination of appropriate ramp slope measurements based on input data such as rise (vertical height) and run (horizontal length).
- Calculating slope ratios, angles, and percentages.
- Verifying compliance with ADA guidelines and other accessibility standards.
- Offering recommendations for various ramp applications (residential, commercial, industrial).
- Providing guidance on safety and construction practices.
- Conversion between various units (inches, feet, meters, centimeters).
- Key functions include:
Formulas Used in Ramp Slope Calculations
The ramp slope calculator utilizes several fundamental formulas to derive accurate measurements. Here’s a breakdown of the key calculations:
1. Slope Ratio (1:X)
X = Run ÷ Rise
This formula yields the ratio of run to rise, providing a clear indication of the ramp's steepness. For instance, a ratio of 1:12 means that for every 1 unit of vertical rise, there are 12 units of horizontal run.
2. Slope Percentage
Percentage = (Rise ÷ Run) × 100%
The slope percentage represents the ratio of rise to run as a percentage. It's a common way to express ramp steepness, making it easy to understand and compare slopes. For example, an 8.33% slope means that for every 100 units of horizontal run, there is an 8.33 unit vertical rise.

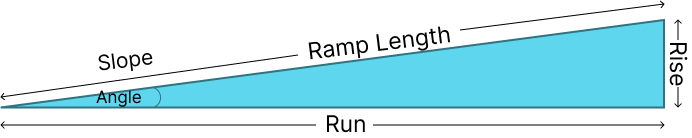

3. Slope Angle
Angle = arctan(Rise ÷ Run)
The slope angle measures the ramp's inclination in degrees. It provides a precise representation of the ramp's steepness, offering an alternative to slope ratios and percentages. Using the arctangent function, we can convert the ratio of rise to run into an angle measurement.
4. Ramp Length
This formula calculates the total length of the ramp from its starting point to its endpoint, taking into account both the vertical rise and horizontal run.
Steps to Use the Ramp Slope Calculator
Step 1
Enter the rise (vertical height) of the ramp
Step 2
Input the run (horizontal length) of the ramp
Step 3
Select the ramp type and application
Step 4
Click Calculate to get slope measurements
Step 5
Review ADA compliance and recommendations
ADA and Other Compliance Guidelines
Adherence to ADA (Americans with Disabilities Act) guidelines is essential to ensure ramps are accessible to individuals with disabilities. Here’s an overview of the common compliance standards:
| Aspect | Description | Requirements |
|---|---|---|
| ADA Minimum Slope | 1:20 (5%) | Most accessible, preferred for public spaces |
| ADA Maximum Slope | 1:12 (8.33%) | Maximum allowed for unassisted wheelchair use |
| Residential Slope | 2:12 (16.67%) | Suitable with assistance only |
| Loading Slope | 3:12 (25%) | For unoccupied wheelchair loading only |
These compliance guidelines ensure that ramps accommodate various needs while maintaining safety and accessibility. Regularly consulting up-to-date local building codes and ADA guidelines is crucial for compliance.
Applications of Ramp Slope Calculations
Ramp slope calculations are applicable in a variety of settings, from residential to commercial. Each application has unique considerations and requirements.
Commercial Applications
Commercial applications require careful consideration of ADA and building code compliance.
- Public building entrances
- Shopping centers
- Healthcare facilities
- Educational institutions
- Common examples include:
Residential Applications
In residential settings, ramp design must balance accessibility with the specific needs of the homeowner.
- Home entrances
- Garage access
- Garden pathways
- Interior transitions
- These applications include:
Example Calculations and Real-World Scenarios
To better illustrate the use and importance of the ramp slope calculator, let's consider a few real-world scenarios:
Scenario 1: Designing a Ramp for a Business Entrance
A small business needs to install a ramp at their entrance to comply with ADA standards. The available space limits the run to 12 feet, and the entrance rise is 1 foot. Let's calculate if this meets the requirements:
- Rise: 1 foot
- Run: 12 feet
- Slope Ratio: 1/12
- ADA Compliance: Meets ADA maximum slope requirement
This design meets the ADA requirement for a maximum slope of 1:12, making it a suitable option.
Scenario 2: Designing a Residential Ramp with Limited Space
A homeowner needs to build a ramp to access their front door. Due to space constraints, the run can only be 8 feet, and the rise is 1.5 feet. Here’s the calculation:
- Rise: 1.5 feet
- Run: 8 feet
- Slope Ratio: 1.5/8 = 3/16 (approximately 1:5.33)
- ADA Compliance: Exceeds ADA maximum slope requirement (Not ADA Compliant)
Since the slope ratio is steeper than 1:12, the homeowner needs to either find a way to increase the run or redesign the entry to meet ADA compliance.
Scenario 3: Verifying an Existing Ramp
A property manager wants to ensure an existing ramp is up to standard. They measure the rise as 6 inches (0.5 feet) and the run as 6 feets. Let's see if it's ADA compliant:
- Rise: 0.5 feet
- Run: 6 feet
- Slope Ratio: 0.5/6 = 1/12
- ADA Compliance: Meets ADA maximum slope requirement
This ramp has a slope ratio of 1:12, meeting ADA requirements, so it's considered safe and compliant.
Advanced Considerations in Ramp Design
Beyond the basic slope calculations, there are other crucial aspects to consider for a safe and durable ramp design.
1. Material Selection for Ramps
The choice of material impacts durability, maintenance, and user safety.
| Concrete | Metal | Wood |
|---|---|---|
| Durable and long-lasting | Strong and lightweight | Cost-effective |
| Low maintenance | Requires non-slip surfaces | Requires regular maintenance |
| Excellent grip when textured | Good for temporary installations | Easy to modify |
2. Weather Impact on Slopes
Environmental conditions can significantly affect ramp performance and safety.
- Rain Considerations: Use non-slip surfaces and proper drainage systems
- Snow and Ice: Install heating elements or use salt-resistant materials
- Temperature Changes: Account for material expansion and contraction
3. Maintenance and Safety Measures
Consistent upkeep and safety protocols are vital for ramp longevity and user protection.
- Regular inspection of surfaces and joints
- Proper lighting installation
- Handrail maintenance
- Clear marking of edges and transitions
Features of Our Ramp Slope Calculator Tool
Comprehensive Calculations
Calculate slope angles, ratios, and percentages with multiple unit options
ADA Compliance Check
Instantly verify if your ramp meets ADA accessibility requirements
Multiple Applications
Support for various ramp types and use cases with specific guidelines
Smart Recommendations
Get intelligent suggestions for ramp design and construction
User-Friendly Interface
Simple and intuitive design makes slope calculations accessible to everyone
Frequently Asked Questions
Q1. What makes a wheelchair ramp safe?
•
A safe wheelchair ramp should have a gentle slope, non-slip surface, sturdy handrails, proper landings, and be free from obstacles. Using Calxify's Ramp Slope Calculator, you can determine the safest incline for your specific needs.
Q2. How long should a wheelchair ramp be?
•
The length of a wheelchair ramp depends on the slope ratio. According to ADA guidelines, a 1:12 slope requires 12 inches of ramp for every 1 inch of rise. Use Calxify's Ramp Slope Calculator to find the exact ramp length based on your elevation.
Q3. What type of ramp material is best?
•
The best ramp materials include aluminum, wood, concrete, and steel. Aluminum is durable, lightweight, and rust-resistant, making it a preferred choice for many.
Q4. How much does a wheelchair ramp cost?
•
Costs vary based on materials, length, and installation. Prefabricated aluminum ramps range from $100 to $200 per linear foot, while concrete ramps may cost more due to labor.
Q5. What is the maximum allowable slope for an ADA-accessible ramp?
•
The ADA requires a maximum slope of 1:12 (8.33%). This means for every inch of vertical rise, there must be at least 12 inches of ramp.
Q6. How far can a ramp go without a landing?
•
According to ADA guidelines, ramps should not exceed 30 feet in length without a landing. Landings must be at least 60 inches long and the same width as the ramp.
Q7. What are the requirements for installing a handicap-accessible ramp?
•
An accessible ramp must have a safe slope, a minimum width of 36 inches, edge protection, and level landings at the top and bottom. The maximum rise should not exceed 30 inches per run.
Q8. Why does the ramp have to be a maximum of 1:10 (10%) near the property boundary?
•
Certain jurisdictions impose this limit to ensure safety, prevent drainage issues, and align with urban planning regulations. Check local codes for specific requirements.
Q9. What determines the maximum grade of a ramp?
•
The ramp grade is determined by accessibility standards, user needs, and location constraints. ADA recommends a 1:12 slope for wheelchair users.
Q10. What are transitions, and why do I need them?
•
Transitions are smooth connections between the ramp and adjacent surfaces to prevent abrupt changes. They improve safety and accessibility for wheelchairs and mobility devices.
Q11. How do I figure out the ramp grade on a curve or bend?
•
Curved ramps should maintain a consistent slope and include wider turns for maneuverability. Use Calxify’s Ramp Slope Calculator to calculate the grade and ensure compliance.
Q12. Which ramp slope should I choose: 1:12, 1:10, or 1:8?
•
A 1:12 slope is best for accessibility and ADA compliance, while 1:10 and 1:8 are steeper and used for shorter, temporary ramps.
Q13. What is ADA compliance regarding ramp slopes?
•
ADA-compliant ramps must have a maximum slope of 1:12, be at least 36 inches wide, have handrails if over 6 inches high, and feature level landings.
Q14. What is the maintenance of a solid aluminum ramp?
•
Aluminum ramps require minimal maintenance, only needing occasional cleaning and inspection for loose fasteners or debris buildup.
Q15. Am I able to move my handicapped ramp after it has been installed?
•
Modular aluminum ramps can be disassembled and moved, while concrete and wooden ramps are typically permanent.
Q16. How wide is a wheelchair ramp with handrails?
•
The standard width for an ADA-compliant wheelchair ramp is 36 inches, but with handrails, the total width may be around 42 inches.
Q17. Can I rent a wheelchair ramp with handrails?
•
Yes, many companies offer rental options for temporary wheelchair ramps with handrails.
Q18. Is a ramp with rails portable?
•
Portable ramps with rails are available, usually in foldable aluminum designs for easy transport and storage.
Q19. Can the ramp be used with just one handrail?
•
A single handrail can be used, but for ADA compliance and added safety, dual handrails are recommended for ramps with a rise over 6 inches.
Q20. How difficult is it to assemble a ramp kit?
•
Most modular ramp kits are designed for easy assembly with basic tools and can be installed within a few hours.
Q21. Is there a limit on the total length (number of runs) a ramp may have?
•
There is no set limit, but landings are required every 30 feet for safety and usability.
